500-6000 Watts PTFE Immersion Heaters Highly Corrosive Fluoropolymer Chemical Heater

PTFE Immersion Heaters For Heating Highly Corrosive Chemicals

PRODUCT DESCRIPTION

Designed for the most demanding chemical applications and to provide years of trouble-free performance.

Fluoropolymer Sleeve Heating Element Quality resistance element is sleeved in braided material for even coil separation. The entire element is given an outer sleeving of pretested and pre-extruded fluoropolymer tubing. THIS IS NOT A COATED PRODUCT.

Over-temperature Thermocouple The over-temperature cutoff device protects the integrity of the fluoropolymer heater. If an opera- tor should leave the heater on while draining or aspirating a tank, when used in conjunction with a temperature control device, it will automatically shut off the heater when it is exposed to air.

• FEATURES

  • Constructed with our exclusive elements for extended service life.

  • High efficiency in a compact design, and an excellent alternative for replacing strip heaters on quartz tanks.

  • TFP for bottom heater applications and inside tank wall requirements.

  • All wetted parts are fluoropolymer and compatible with virtually any chemistry for unlimited process options. (Not to be used with flammable solutions.)

  • Low watt density design promotes process temperature uniformity.

• SPECIFICATIONS

  • From 2,000 - 18,000 watts

  • 120 to 600 volts, single or three phase

  • Up to 10 watts per square inch (1.5w/cm2)

  • Up to 130º Celsius (266° F). For higher temperatures, see Options section.

• OPTIONS AVAILABLE (CONSULT FACTORY)

  • .030 inch (0.76mm) thick sheath available for applications above 130°C (266° F) or for use with certain chemistries such as nitride etch or HF

  • PID temperature control module

  • Custom configurations and lengths

  • Element gas purge flow regulator panel

  • Bolt down feature

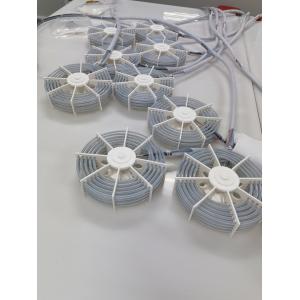

FLAT ASSEMBLY TYPE C – PTFE Immersion Heater

• ‘All-plastic’ model

• Designed for small tank configurations and low powers

• From 0.5 kW

• Minimum bulk

‘All-plastic’ models particularly adapted to small tank configurations and low powers. Small overall dimensions as the structure follows the oval shape of the heating part.

Recommended up to 18 kW.

Assembly Type C
On plastic structure PVDF, PTFE or FEP.
Standard configuration: heating cable coated Teflon® PFA and frame with PTFE or PVDF strips.

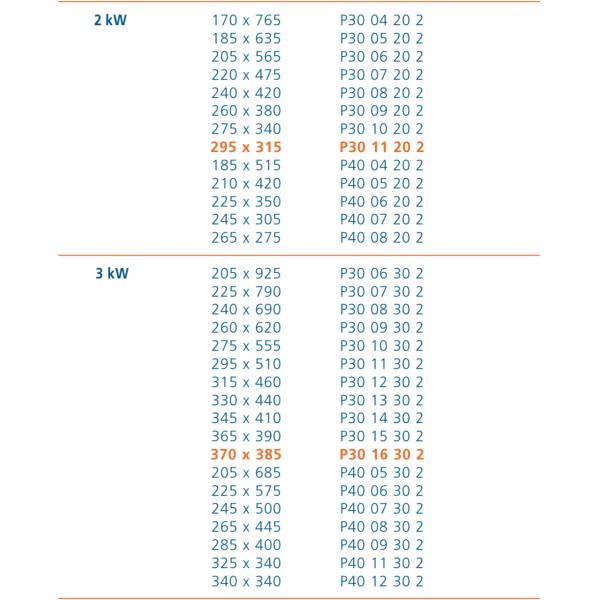

For use with feet at the bottom of the tank. Available for heaters with reference beginning with P30, P40 and P90.

Accessories and Options:

FEET FOR C

For installation at the bottom of the tank, feet in PP or PVDF (standard height 50 mm)

ref in PP : PIPP, ref in PVDF : PIPF

EXTRA LENGTH OF CABLES

Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.

REMOVABLE GUARDS FOR C

Perforated plastic guard in PTFE or PVDF.

ref in PTFE : PRPPP, ref in PVDF : PRPPF

CABLE GLAND, 75MM DIAMETER

Allow 300 mm extra on the H length (H=installation height on N)
