36KW Industrial Inline Chemical Heater Single Or Three Phase Solvent Tank Heater

Name: 36KW Industrial Inline Chemical Heater Single Or Three Phase Solvent Tank Heater
Brand: Precise Heater
Price: 2 USD

Wholesale 36KW Industrial Inline Chemical Heater Single Or Three Phase Solvent Tank Heater from china suppliers

Brand Name : Precise Heater

Model Number : PH320

Certification : CSA,UL,CE

Place of Origin : China

MOQ : 1 unit

Price : US$2,000 - US$5,000 / unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 units per month

Delivery Time : 15-25 days

Packaging Details : Export Wooden Case

Material : Titanium Elements

Safety Features : Liquid level sensor,Ground wire options

Applications : Semiconductor,Pharmaceutical,Fuel Cell,Heating of Flow-Flashpoint Solvents & Acids

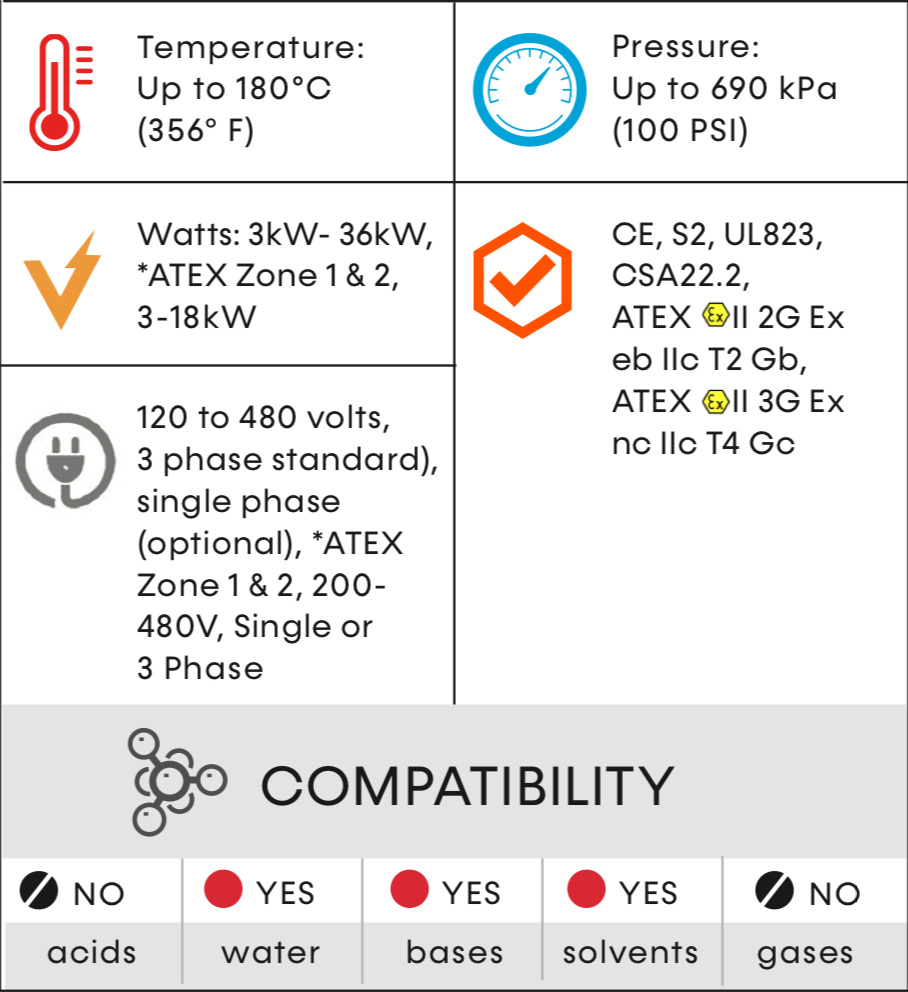

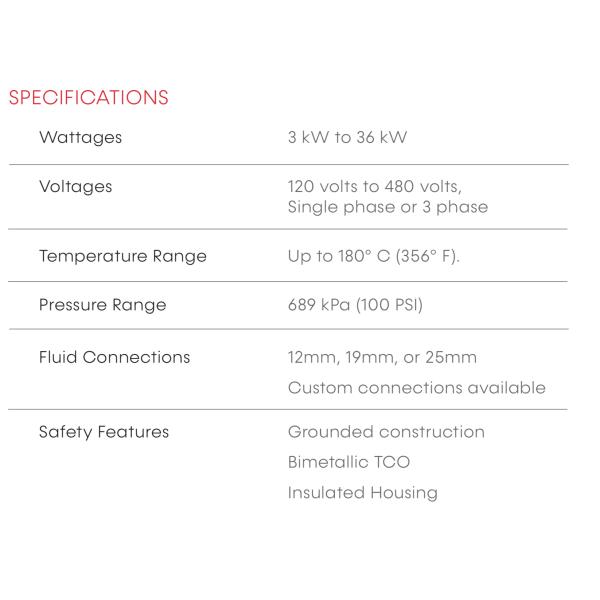

SPECIFICATIONS : 5,000 watts up to 36,000 watts

Voltages : 208 to 600 volts,Single and Three phase standard

Shape : Inline Solvent Heater

Contact Now

Chemical and Solvent Heater - Chemical Heaters for Chemical and Process Tanks

36KW Industrial Inline Chemical Heater Single Or Three Phase Solvent Tank Heater

PreciseHeater is designed for heating chemicals and solvents in hazardous operating environments. Suitable for heating a wide variety of flammable and non-flammable chemistries using electropolished stainless steel wetted materials for improved cleanliness. Offers outstanding performance over a wide range of flow and temperature requirements. Available up to 36kW, the Frontier is the most powerful inline solvent heater available.

APPLICATIONS:

Wafer Cleaning & Rinsing (Wet Bench Systems)
Heating of Flow-Flashpoint Solvents & Acids
For Use with Single Pass or Recirculating Systems
Similar Uses as PFA-Tube Heaters, but Higher Temp Limits
Processes Involving Explosive Vapors
Situations where Exact Temperature Control is Critical

FEATURES & BENEFITS:

Fluid Path has No Contact with Heating Elements
Allows for Safe Heating of Low Flashpoint Solvents
Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
Solvent Tubes are Passivated and Electro-Polished for Purity
Self-Draining Flow-Tubes Eliminate Trapped Debris
Cooling Tube Quick Reduces Heat Below Flashpoint
NEMA 7 Explosion-Proof Electrical Enclosure
Equipped with Robust Sensor & Switch Array

Indirect Heating Design

Provides an evenly heated surface and reduces surface temperatures and hot spots

Improves chemical longevity and performance for temperature-sensitive chemicals

Advanced Cleanliness

Electropolished 316SS wetted surfaces and no o-rings in the flow path minimizes contamination of the process liquid

Crevice-free design reduces risk of contamination Non-cast design maintains quality of electropolished surfaces

Designed for Performance

More available heating power than other inline solvent heaters (up to 36kW)

Lower mass for faster response time

Minimizes fluid pressure drop even at very high flow rates (>60 LPM)

Tubing (Solvent Tube):

.750” OD (3/4") (19.1 mm)
.065” Wall (1.7 mm)
Overall Process Tube Length: 115.5” (2934 mm)
316L Stainless Steel, Passivated & Electro-Polished
Max Pressure: 3300 psi (227 bar)

Tubing (Cooling Tube):

.250” OD (1/4") (6.3 mm)
.035” Wall (0.9 mm)
Overall Process Tube Length: 86.25” (2190 mm)
316L Stainless Steel
Max Pressure: 5100 psi (351 bar)

Enclosure:

NEMA 7 (explosion-proof)
(Class 1, Div. 1 and 2, Groups B, C and D)

Max Working Temperature:

392°F (200°C)
Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.

Sensors:

Two J-Type Thermocouples (cast in)
One J-Type Thermocouple (removable)
Snap Action High Limit Switch (with auto reset)

Fittings:

Solvent Tube: Flaretek®-Compatible or Swagelok® VCR
Cooling Tube: NPT or Swagelok® VCR

Available Accessories:

Insulating Jackets
Compression Fittings
